FTX-1 Series – True All-Rounder
HF/50/144/430MHz All Mode Wide-Coverage SDR Transceiver for a 100W Base Station and 10W Field Operation
We are pleased to announce that we will launch the new HF/50/144/430MHz All Mode Wide-Coverage SDR Transceiver –FTX-1 series : “FTX-1 Field” and “FTX-1optima”
The FTX-1 provides continuous wide-range receiver coverage from 30kHz through 174MHz and from 400MHz through 470MHz including SWL, FM broadcast, and Air-band.

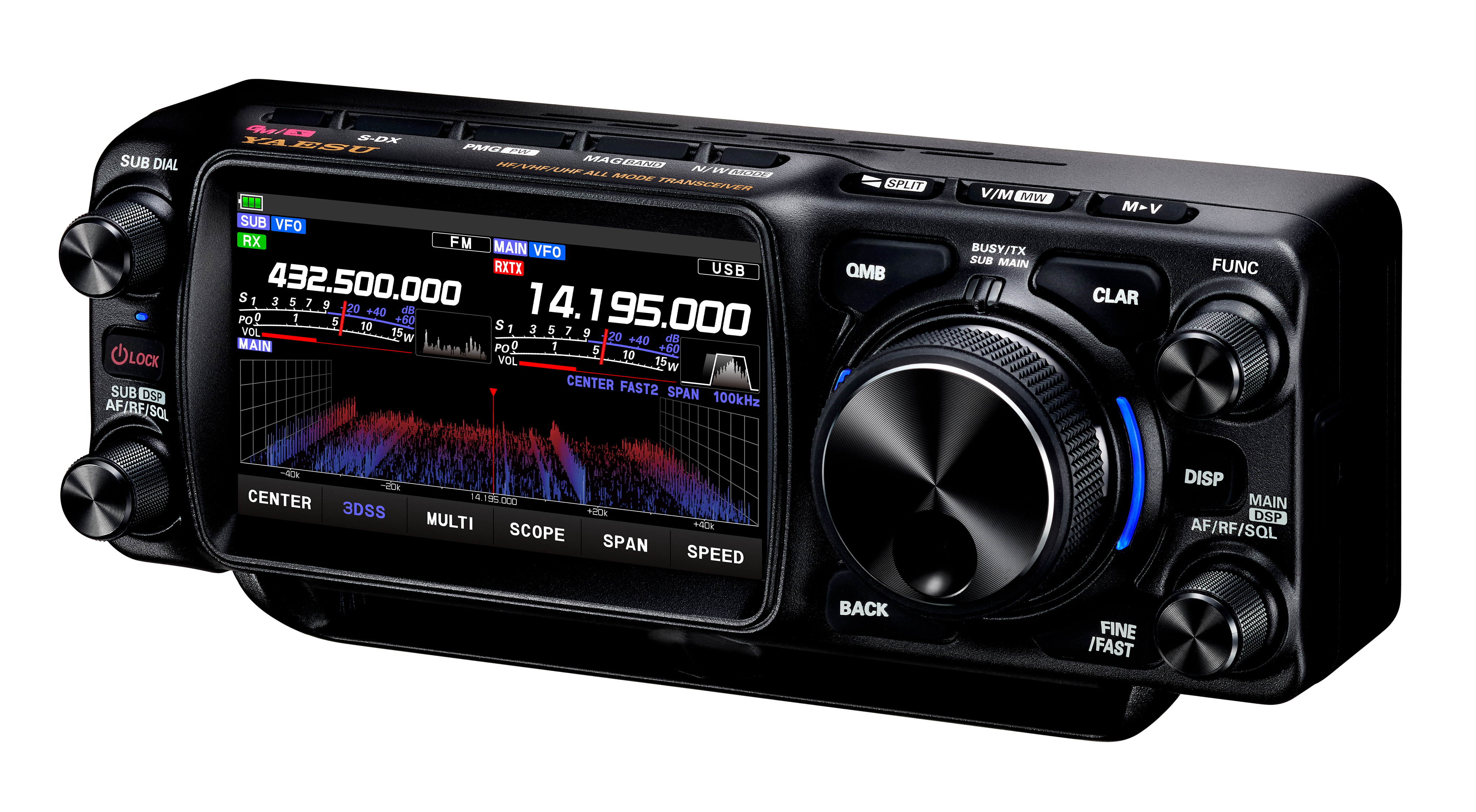

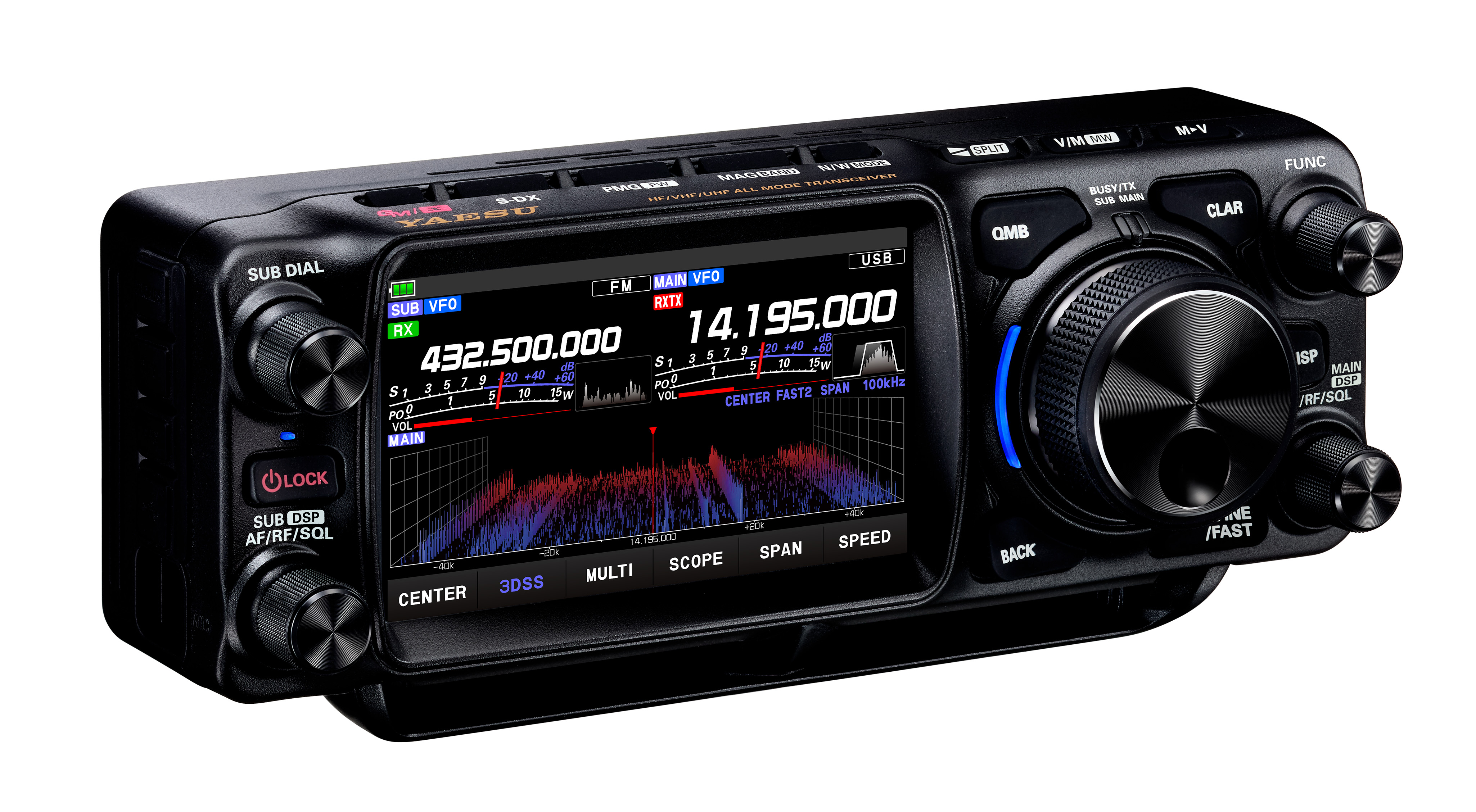

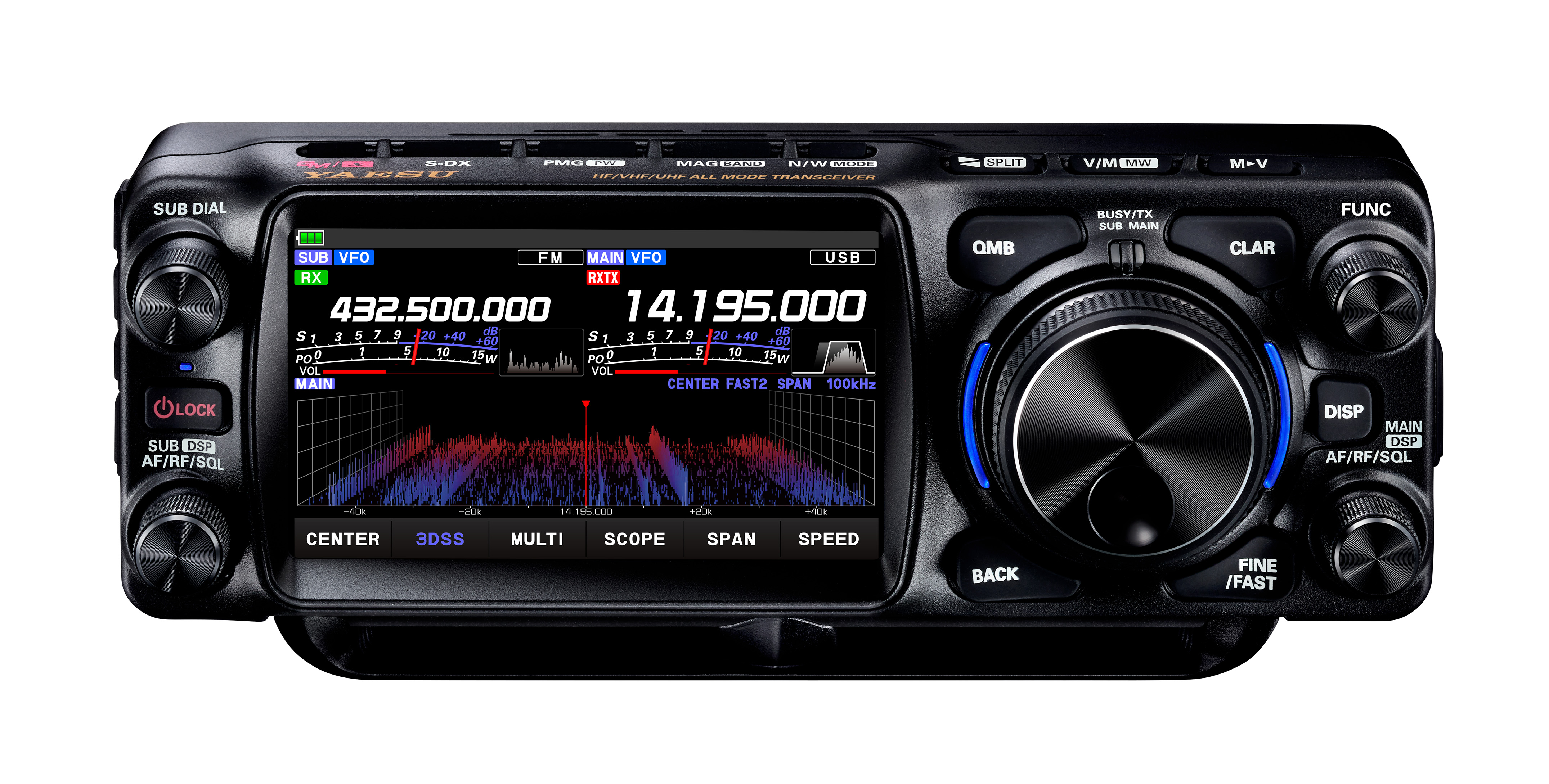

FTX-1 Field and FTX-1optima shares the “Field Head” - a field compact transceiver (W8.4’’ H3.5’’ D2.2’’).

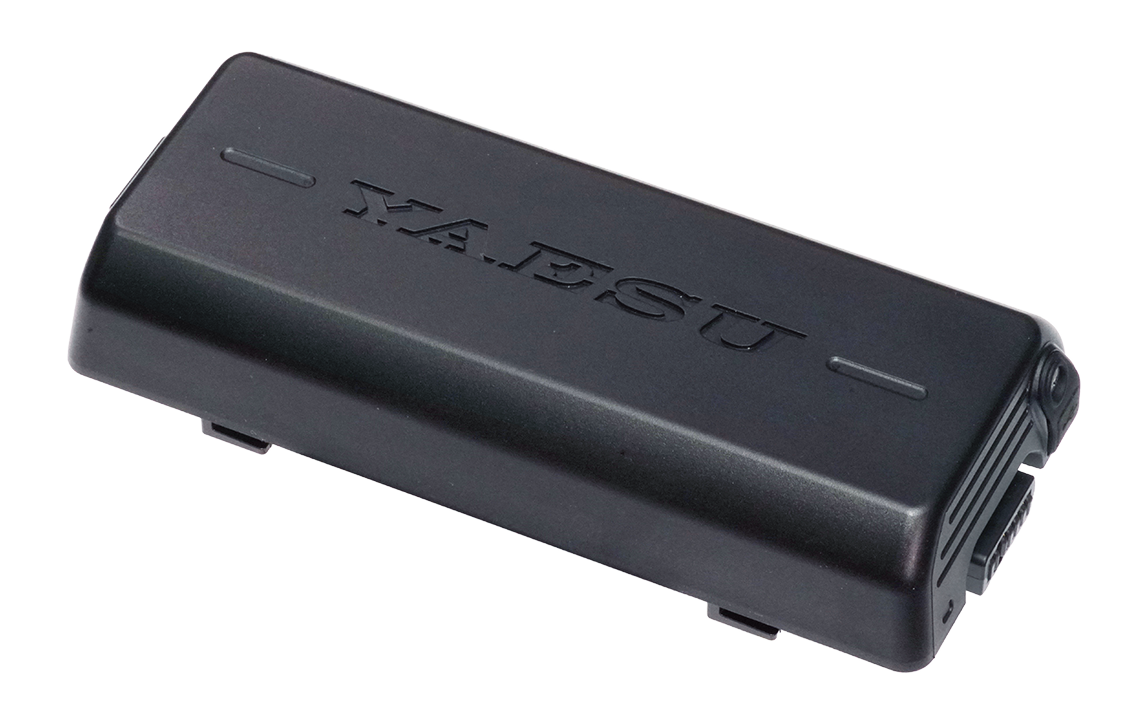

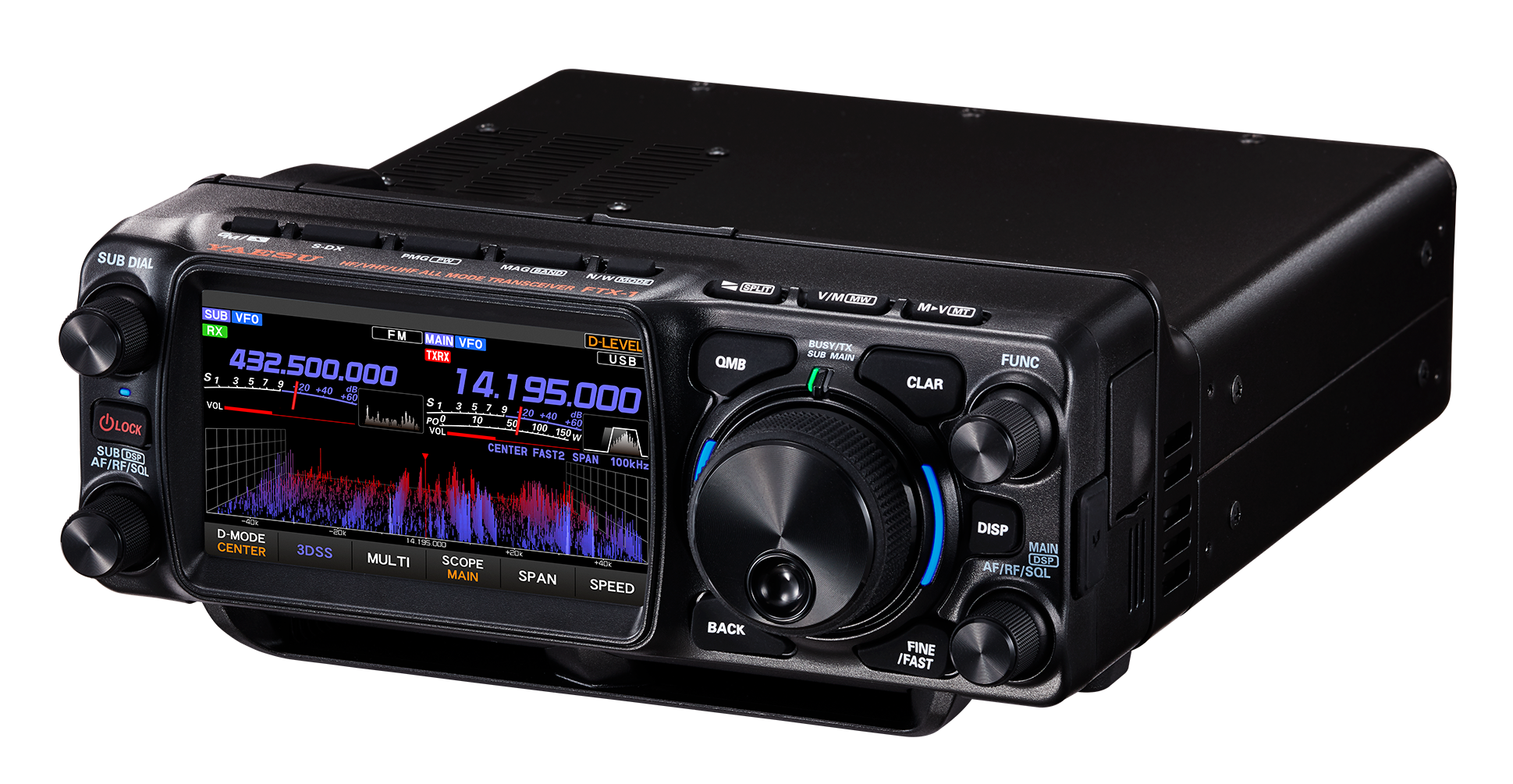

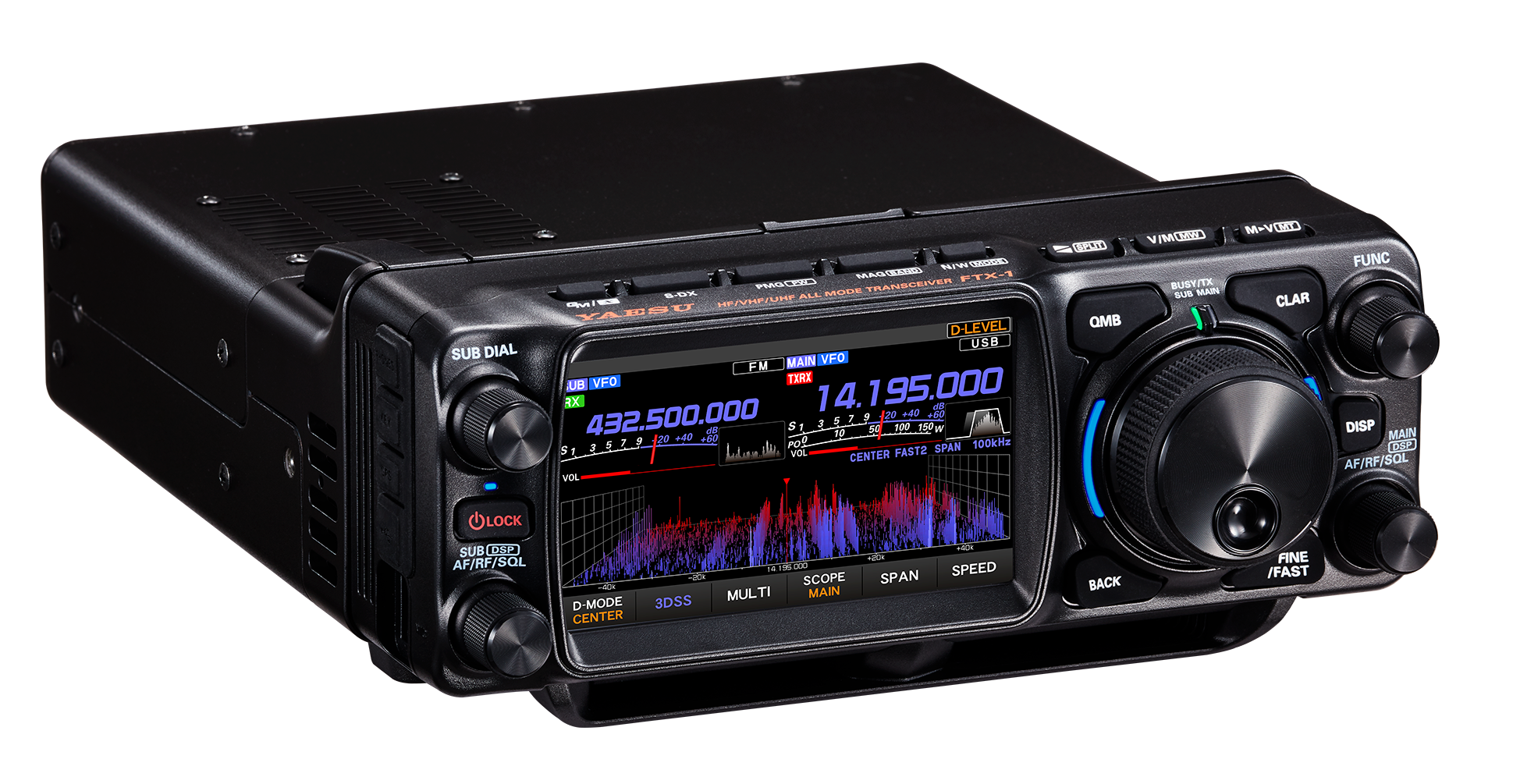

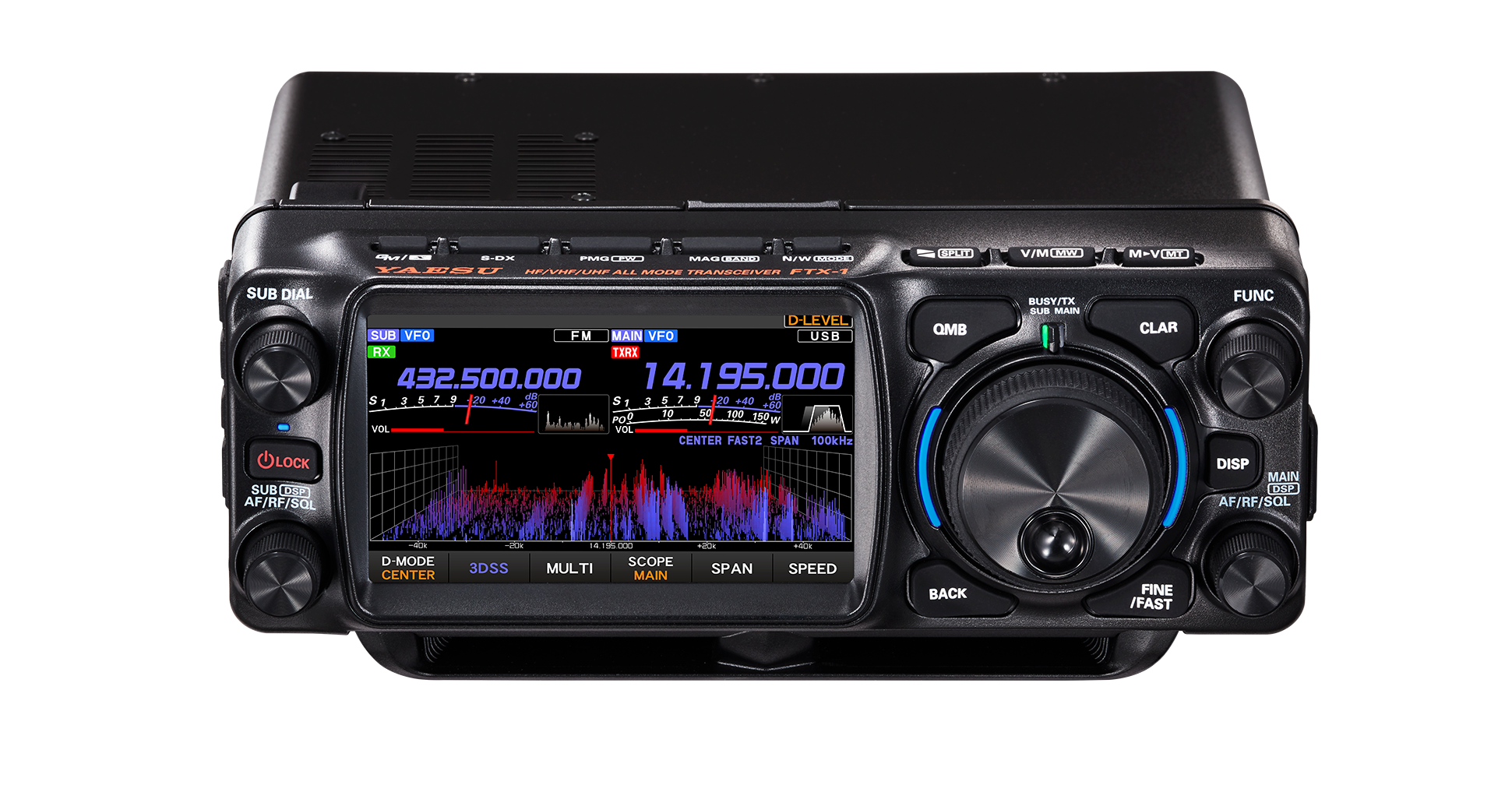

FTX-1 Field is supplied with a 6400mAh large capacity Li-ion Battery - SBR-52LI for field operation. FTX-1optima is supplied with a detachable 100W RF power amplifier - SPA-1 for a Base Station in addition to the SBR-52LI Li-ion battery for field operation.
By attaching the SBR-52LI to the rear of the Field Head, the FTX-1 provides 6W (5W for QRP) stand-alone operation on HF through V/UHF bands in all modes – SSB, CW, AM, FM and C4FM digital. 9-hour stand-alone operating time with 6W on HF bands (SSB), and 8-hour operating time with 6W on V/UHF bands (FM) are available (6-6-48 duty cycle). The SBR-52LI is rechargeable separately with a third-party’s USB Type-C PD cable (45W or greater/ 15V 2A).
When using an external 13.8V DC power supply, up to 10W of power output is available, and the Field Head charges the SBR-52LI automatically.

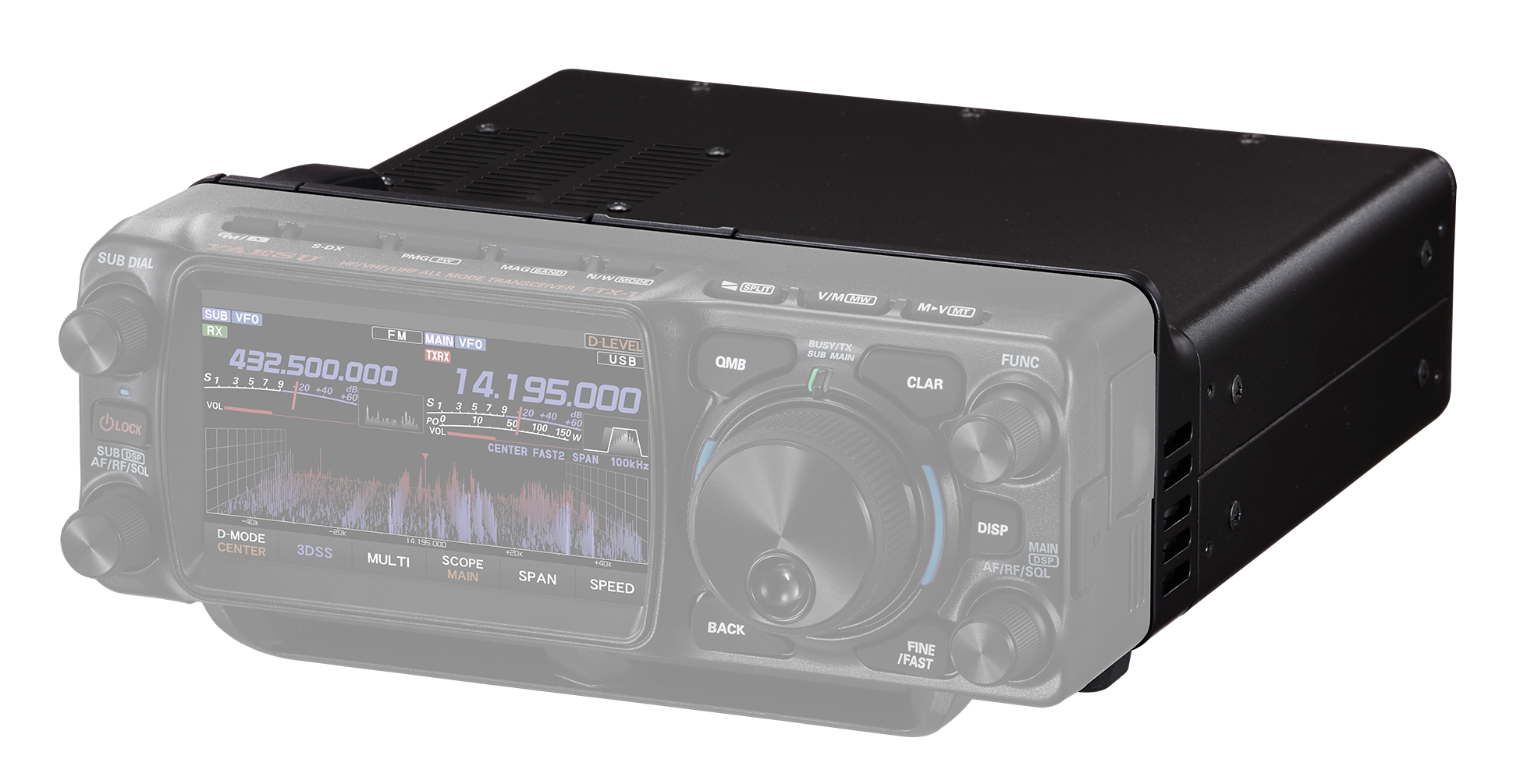

By connecting the SPA-1 to the rear of the Field Head, the FTX-1 operates as a 100W Base Station. No tools are necessary for connection.
·6W (5W for QRP) Field Operation with the supplied Li-ion Battery ·10W Field Operation with external DC power supply
Included items:
Field Head
SBR-52LI - 6400mAh Li-ion Battery
DC Power Cable with 2p-round plug for Field Head SSM-75E Hand Microphone
·100W Base Station Operation with external DC power supply ·6W (5W for QRP) Field Operation with the supplied Li-ion Battery ·10W Field Operation with external DC power supply.
Included items:
Field Head
SPA-1 - 100W RF Power Amplifier
Heavy-Duty DC Power Cable for SPA-1 (25A) DC Power Cable with 2p-round plug for Field Head SBR-52LI - 6400mAh Li-ion Battery
SSM-75E Hand Microphone
The Yaesu FTX-1 series is backed by a industry leading 3 year warranty. Country of Origin: Japan
| Batteries | ||
| SBR-52LI | 6400mAh Li-ion Battery Pack *Supplied with radio package |
|
| Headsets | ||

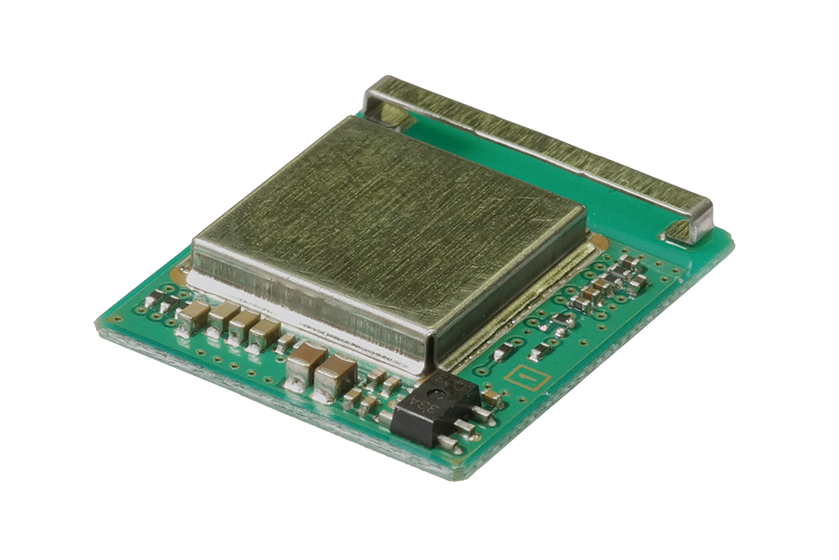

| BU-6 | Bluetooth Unit |
|
| SSM-BT20 | Bluetooth Headset |
|
| YH-77STA | Lightweight Stereo Headset for use with HF transcievers |
|
| Headsets | Headset Adapters | ||
| SSM-BT20 | Bluetooth Headset |
|
| Headsets and Surveillance | ||
| YH-77STA | Lightweight Stereo Headset for use with HF transcievers |
|
| Microphones | ||
| M-1 | The Condenser Microphone Element produces greater frequency response and clear, crisp audio characteristics perfect for being heard on crowd bands and in big DX pile-ups, while the Dynamic Microphone Element delivers the rich low-mid tonalities, favored for local QSOs. The response of each microphone element may be adjusted independently using the internal Nine (9) Band Graphic Equalizer. Each element has a separate volume control for independent adjustment of output levels. The output of each microphone may be selected separately, or they may be combined to produce the most pleasant tonality. Both the Condenser Element and Dynamic Element in the M-1 utilize the Nine (9) Band Graphic Equalizer (63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz). Each element’s frequency response is independently adjustable. Two (2) frequency response memories and a “through” mode are provided for each element, and are easily switchable by one-touch buttons on the microphone base. The PTT key uses three Air-Cylinder Tubes which afford a smooth and comfortable long keystone. The contactless magnetic switch ensures long-life and stable operation. Other included features are; Recording and playback capability (20 seconds), to confirm the audio tonality; Large red TX LED Indicator; Large Graphic Equalizer and Frequency Response Scope LCD Display with anti-reflective coating; Headphone jack; Touch PTT keylock; Built-in low-cut filter to shape the low frequency response; Cannon-type (XLR) output plug connector; and Audio output volume control for headphones. Two screwdrivers are included to precisely adjust the graphic equalizer and microphone gains. |
|
| M-100 | The Condenser Microphone Element produces greater overall frequency response - with clear and crisp audio characteristics - while the Dynamic Microphone Element delivers enhanced low and mid-range frequency response. A set of one-touch buttons on the microphone base enable the two microphone elements to be used independently or in combinations to create the most favorable sound quality for each person’s unique voice characteristics. Built-in Low-Cut (cut-off at 340Hz, -6dB/octave) and High-Cut (cut-off at 2kHz, -6dB/octave) controls shape the low/ high frequency responses enabling changes to be made in the transmitted audio characteristics, according to user’s preference and operating conditions. The supplied TBC (Treble Boost Cowling) further enhances the voice response attributes in the important 1,000 – 1,500 Hz range, in order to develop a penetrating signal with a condensed and specific texture. The PTT key actuates three Air-Cylinder Tubes, which afford a smooth and comfortable keystroke – free of a hard “click”. The incorporation of a magnetic switch ensures long-life and stable operation. The highly visible ON AIR LED Indicator clearly informs the user when the PTT circuit is active. The supplied microphone cable can be used to provide power to the M-100 simply by connecting with compatible YAESU HF transceivers*. Current YAESU HF radio owners can immediately start using this new microphone as an exciting and valuable addition to their current ham radio operation. Whether it’s for wider-range audio with more presence or focused energy to cut through the pile-ups, the M-100 is an exceptional station asset. While the recently released M-1 microphone provides the ultimate flexibility in enhancing each user’s distinctive voice characteristics - utilizing a full-featured Nine Band Graphic Equalizer - we are confident that the carefully selected feature configuration of the new M-100 offers the advantage of combining the two different microphone element characteristics with simplified operation, all at a very attractive price point. |
|
| M-70D | The M-70 utilizes a directional condenser microphone element which has a prescisely tuned the frequency response to obtain clear and crisp audio quality.. The PTT uses three Air-Cylinder tubes similar to the Reference Microphone M-1 to provide a solid and smooth extended operation. A simple one-touch PTT keylock button is placed just above the PTT key for those long rag chews. Built-in Low-Cut filter allows to shaping of the low frequency response (cut off at 340Hz, -6dB/octave). ON/ OFF is selectable by a sliding switch located on the bottom of the microphone. An isolation transformer is integrated in the circuit board to enhance the audio quality. The M-70 is compatible with all YAESU HF transceivers equipped with round 8-pin microphone connector or 8-pin modular microphone connector. We believe this Microphone will have a positive impact on your YAESU HF transceivers business. |
|
| M-90D | The M-90D and M-90MS utilizes a dynamic microphone element that is finely tuned to deliver rich low to mid frequency response desirable for a clear and concise conversation. Using a windscreen cover and a directional micophone element, the structure of the microphone of the M-90D and M- 90MS is designed to concentrate voice input from the front while reducing ambient noise from the side. Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB/octave). An isolation transformer is integrated in the circuit board in order to enhance the audio quality. The M-90D and M-90MS* are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector. The PTT of the M-90D uses three Air-Cylinder tubes similar to the Reference Microphone M-1. This provides solid and smooth extended operation. A simple one-touch PTT keylock button is placed directly above the PTT key for those long rag chews. |
|
| M-90MS | Microphone Stand Kit (microphone stand is not included). |
|
| SSM-75E | Hand Microphone |
|
| SSM-BT20 | Bluetooth Headset |
|
| Miscellaneous | ||
| MHG-1 | FT-450 Side Carry Handle |
|

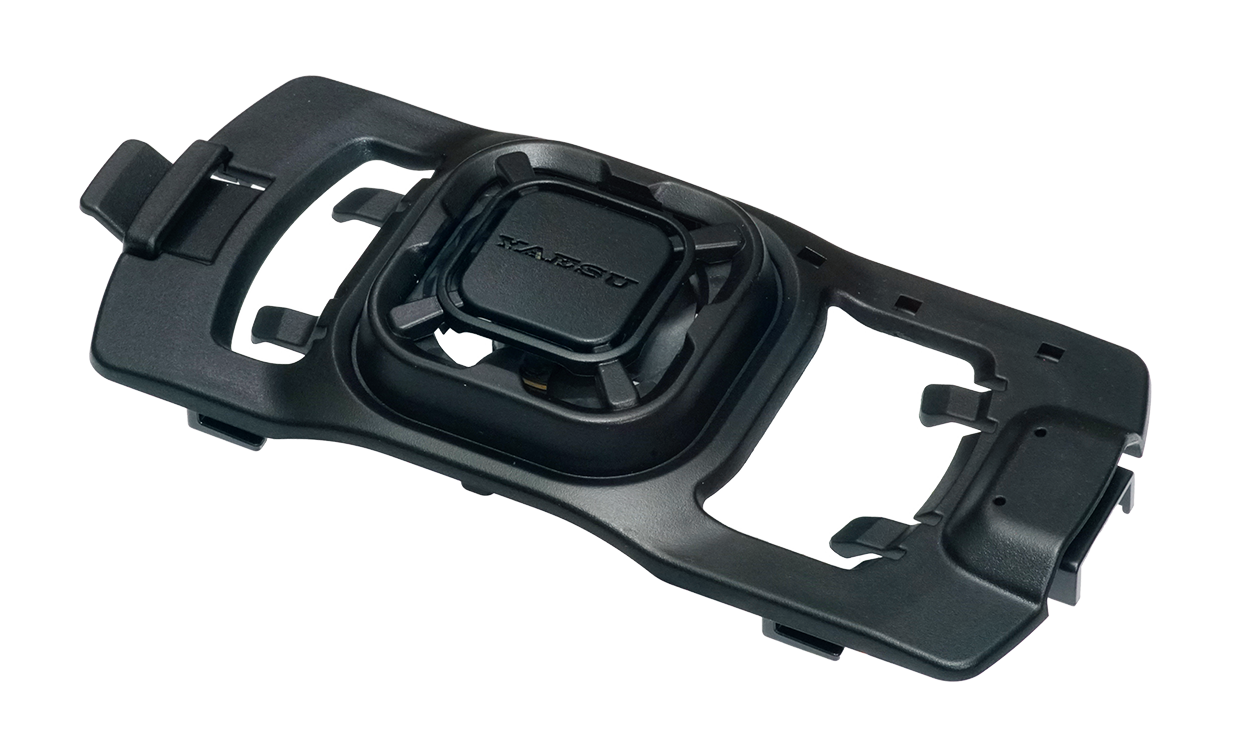

| SCF-1 | Cooling Fan |
|

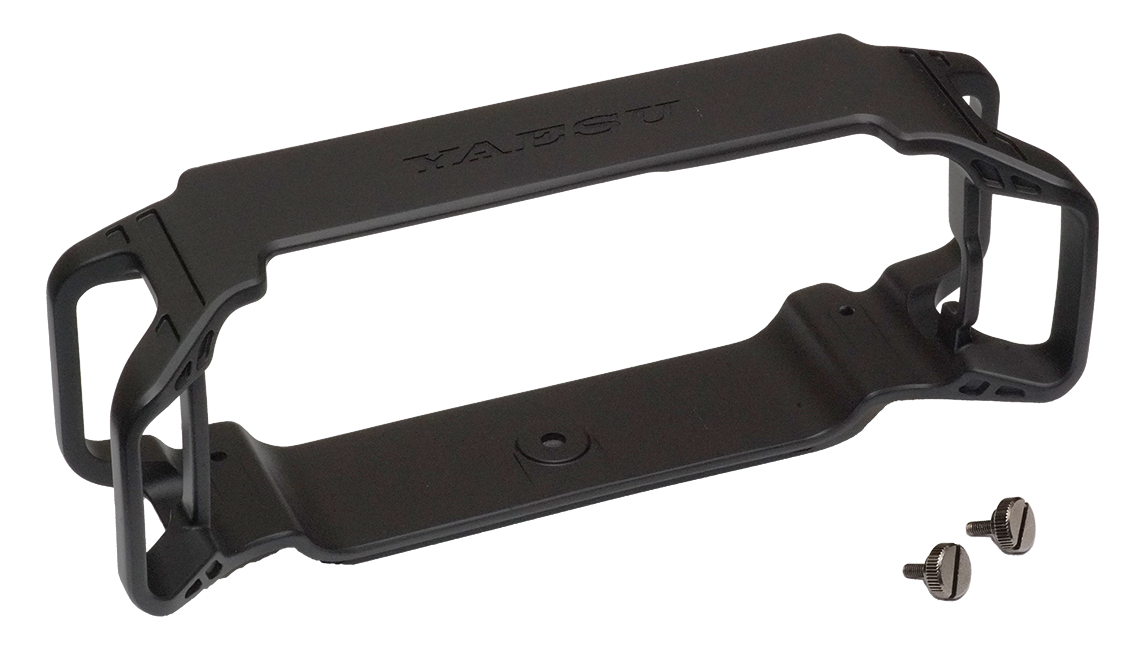

| SPG-1 |
|
|
| Power Supplies | ||
| FP-1023 | Power Supply (23A) |
|
| FP-1030A | Power Supply (30A) |
|
| SPA-1 | 100W Power Amplifier *supplied with FTX-1 optima |
|
| Power Supply | ||
| FP-1030A | Power Supply (30A) |
|
