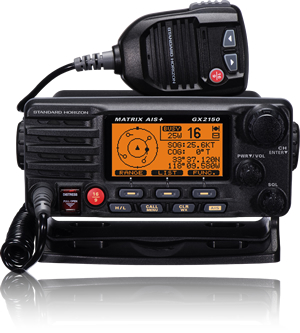

Class D VHF with Built-in Dual Channel AIS receiver, 30W PA/Fog and RAM3 capable



Click here for document explaining GX2150 updates compared to GX2100.

  • Integrated dual channel AIS (Automatic Identification System) receiver
  • 4800 or 38400 NMEA baud rate selection, for plotters with 1 NMEA port



  • Able to use PA or Fog signaling when on AIS display
  • True and Magnetic bearing selection on AIS display
  • AIS target display: MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG*
  • Contact Class A or B AIS Ship with DSC*
  • Programmable CPA or TCPA collision avoidance alarms*
  • ITU-R M493-13 Class D DSC (Independent Channel 70 receiver built-in)
  • Submersible JIS-7 / IPX7 (3.3 feet for 30 minutes)
  • 80dB Commercial grade receiver
  • DSC position request and report functions when connected to compatible GPS chart plotter
  • Navigate to a DSC Distress Call*
  • 30 Watt PA/Loud Hailer with preprogrammed fog signals and listen back
  • ClearVoice noise canceling speaker microphone with channel selection and 16/9 key
  • GPS Compass, Waypoint and GPS status pages*
  • Navigation (LAT/LON, Time, SOG and COG) information shown on display*
  • Enter, Save and Navigate to waypoints with Compass page*
  • Overall dimensions: 3.1H x 7.1W x 6.3D
  • Flush mount dimensions: 2.6H x 6.3W x 5.9D
  • User programmable soft keys
  • Versatile user-programmable scanning, priority scan and Dual Watch
  • Oversized rotary channel knob with push to enter, backlit display and keys
  • Optional connection for RAM3 second station remote microphone with AIS display
  • Intercom between radio and RAM3
  • Voice Scrambler (optional)
  • Local/Distance attenuator
  • E2O (Easy-To-Operate) menu system

*when connected to a GPS








Updated Features
The MATRIX AIS+ features have been updated to meet your demands:
BAUD RATE SELECTION:
The MATRIX AIS+ has a menu selection which allows the user to change the GPS input and DSC/AIS output baud rate. This change was made in response to requests from the market to resolves connection problems of certain plotters (RayMarine C Classic Series and Lowrance HDS 5 & 7) which only have one comport.

PA/Fog and AIS display
The MATRIX AIS+ can use the PA or Fog horn and use the AIS display at the same time.

GPS Status Display
If a chart plotter with GSA and GSV NMEA sentences is connected to the GX2150, the radios display can be set up to show a satellite numbers and related signal strengths.

AIS Compass Direction
GX2150 can be set to show AIS BRG to target in True or Magnetic
Four built-in receivers
The MATRIX AIS+ has 4 dedicated receivers to keep you aware of communications and vessels around you.
General coverage receiver for marine VHF
Channel 70 receiver for Digital Selective Calling
Two AIS receivers to receive transmissions from Class A and B transponders
Dual Channel AIS Receiver Built-in
The MATRIX AIS+ GX2150 has a dual channel AIS receiver built-in which allows you to see AIS targets simply by connecting a GPS with NMEA 0183 output and a marine VHF antenna. To show your vessels position in relation to AIS targets press the dedicated AIS key.

The AIS display is capable of showing MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG of AIS targets. You may also contact an AIS Ship directly using Digital Selective Calling. Two alarms (CPA and TCPA) may be setup to alert you when an AIS ship may be approaching to close to your location. In addition the GX2150 can be connected to a compatible GPS chart plotter (which can use NMEA 0183 VDM sentence at 38400 baud) to show AIS targets.
Navigate to Waypoints
The MATRIX AIS+ is capable of entering and saving up to 100 waypoints. These waypoints may be selected and navigated to by using a unique navigation compass display that shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint when connected to an external GPS.
30W PA and Fog signaling with Listen back
The MATRIX AIS+ includes a 30W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes and the AIS Display may be accessed and used.

In addition, the MATRIX AIS+ allows you to start a fog horn and then view the AIS page simultaneously.
Big, bold display
There is no question about it. With a big, bold display there is no mistaking the information. The contrast and brightness can be adjusted for situations where the radio cannot be mounted directly in front of you.
Programmable Scan, Priority Scan and Dual Watch
Scanning is not an issue with the MATRIX AIS+. The radio can be setup to scan any number of channels with or without a priority channel or simply can be setup to scan between a priority channel and one other channel (dual watch).
NOAA Weather channels and Weather Alert
10 NOAA and Canadian Weather channels are pre-programmed and easily selectable using the dedicated WX key. In addition, the MATRIX AIS+ can be set to monitor WX channels and provide an audible alert to inform of pending storm advisories.
Digital Selective Calling (DSC)
The MATRISX AIS+ is an ITU Class D class DSC VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels.

The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, All ship - Urgency and Safety, Group, Position report and position request calls.
RAM3 second station capable
Need to remotely control a VHF from your cockpit of fly bridge? The MATRIX AIS+ is RAM3 remote mic capable to control all VHF and DSC functions at a second station. In addition, the MATRIX AIS+ can show AIS displays and vessel information when connected to a GPS.
It’s built better so backed better
Because the GX2150 is built better, it’s back better. If your Standard Horizon GX2150 ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period! If it fails thereafter in normal use it for the life time of the product it is covered by Standard Horizon’s Lifetime Flat Rate Service and Customer Loyalty Programs.
