6W Ultra Compact Waterproof Marine Handheld Transceiver Features • Submersible construction meets IPX7 waterproofing standard of 1 Meter (3.3') for 30 min • Floating (When fitted into the optional flotation case SHC-29*) • Ultra Compact case design: 2.05"W × 3.74"H × 1.3"D • 6W transmit power output (Selectable 6/2.5/1W) • 600mW Loud Audio Output • Preset key used to recall up to 10 favorite channels • Easy to Operate Menu System • Scanning operation and Multi-Watch (Dual Watch and Triple Watch) • CH16/S Quick Access (S: Sub-channel) • Built-in Lithium Polymer Battery Pack (7.4V, 1850mAh) • NOAA Weather Channels with Weather Alert • FM Broadcast Radio Receiver • 3 Year Waterproof Warranty   Ultra Compact Case Design Measuring 2.05" W x 3.74" H x 1.3" D the new HX40 is about the size of a deck of playing cards. Making this portable radio easy to fit just about anywhere. Better Resolution (Dot Matrix) Display The HX40 comes with a very visible Dot Matrix display with a very clear, very bright fully backlit display. E2O Easy to Operate Menu System Keeping the everyday Boater in mind, the intuitive menu system allows easy access of all of the setup functions of the radio, making it easy to customize settings based on the preferences of the individual Built in FM Broadcast band receive The HX40 has an expanded receiver allowing the user to tune in to their favorite FM radio station. The radio will receive FM broadcast bands between 76 MHz to 108 MHz.

Model
Antennas & Adapters
CAT460	Rubber Duck Antenna
CN-3	SMA to BNC Adaptor
Battery Chargers
E-DC-19A	DC CABLE
E-DC-6	DC Cable; plug and wire only
SAD-25B	AC Adapter

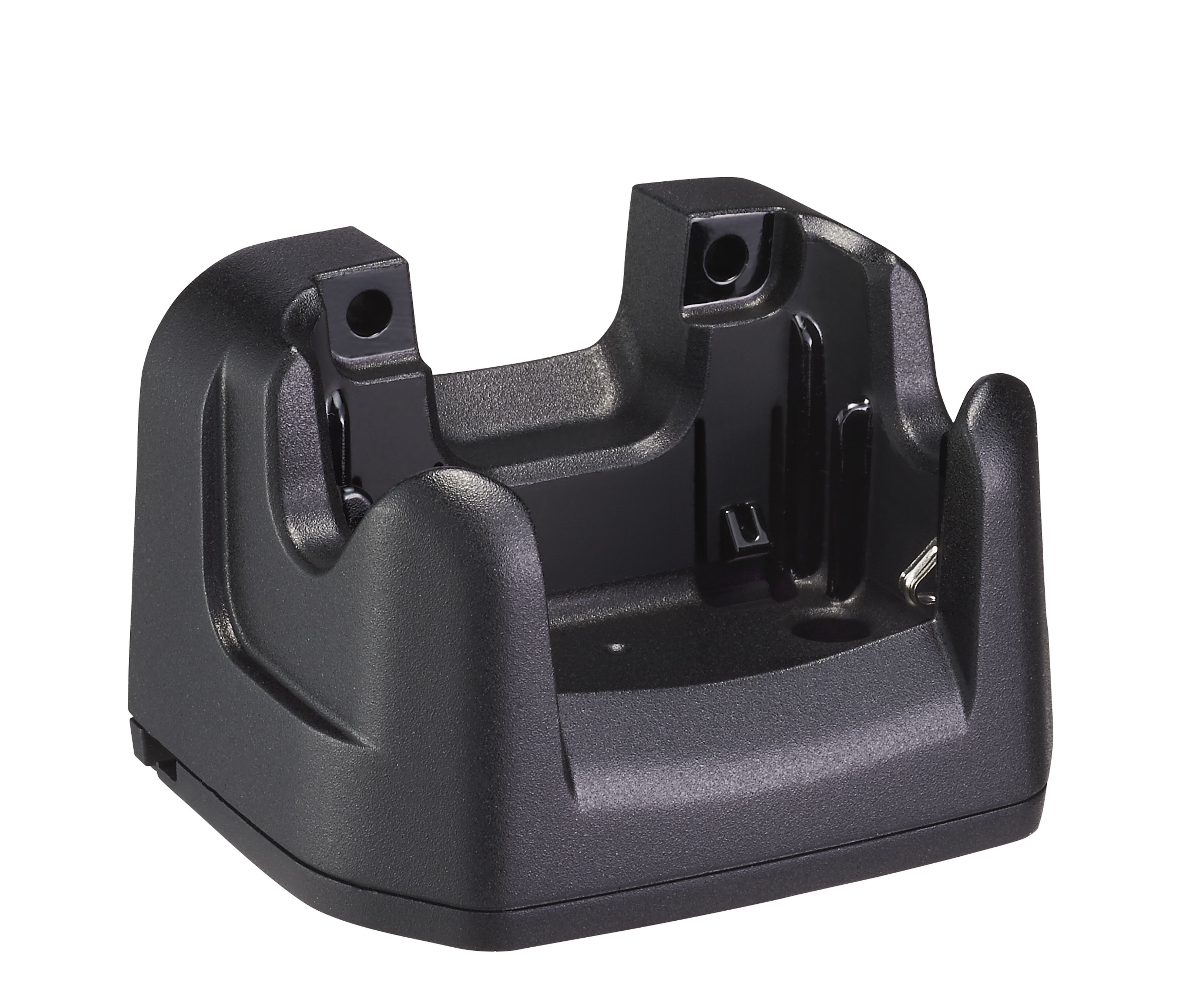

SBH-27	SBH-27 Charging Cradle
Cases & Belt Clips

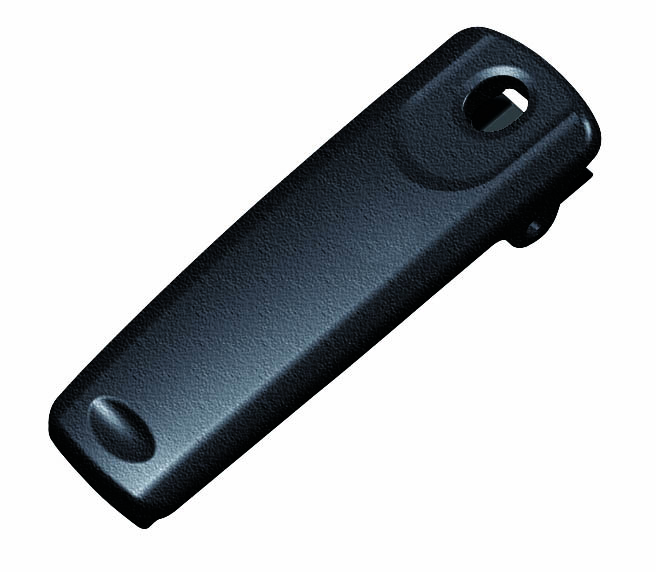

SHB-19	SHB-19 Belt Clip

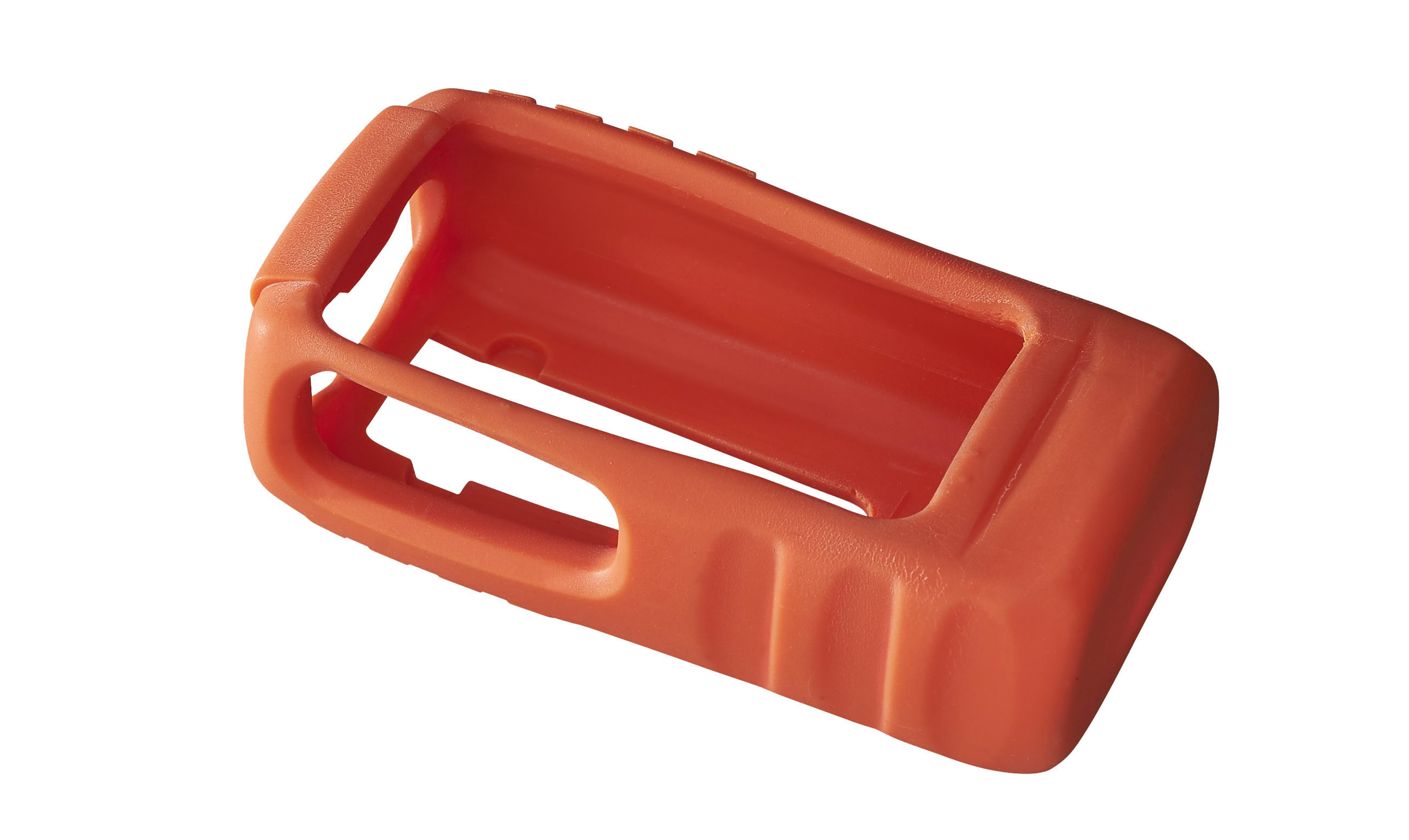

SHC-29	SHC-29 Floating Case
Microphones
CMP460	Submersible Noice-Cancelling Speaker Mic
MH-73A4B	Submersible Speaker Microphone
SEP-10A	SEP-10A Earphone
SSM-17H	Compact Speaker Microphone (replaces MH-57A4B)
SSM-21A	Submersible Commercial Grade Speaker Microphone with Heavy Duty Belt Clip
SSM-517A	SSM-517A Earpiece Microphone
SSM-64A	Headset with boom mic, PTT and VOX operation
Mounting Hardware
SCH-11	Handheld VHF Hanger Bracket

Marine \ Owners Manuals \ VHF Handheld       HX40/HX40E Owner's Manual (English)  ( 5.04 MB )

Marine \ Owners Manuals \ VHF Handheld       HX40E Owner's Manual (French)  ( 5.08 MB )

Marine \ Owners Manuals \ VHF Handheld       HX40E Owner's Manual (Spanish)  ( 5.07 MB )

Marine \ Product Images \ VHF Handheld       Jim Sammons HX40-1  ( 2.63 MB )

Marine \ Product Images \ VHF Handheld       Jim Sammons HX40-2  ( 10.58 MB )

Marine \ Product Images \ VHF Handheld       Jim Sammons HX40-3  ( 18.52 MB )

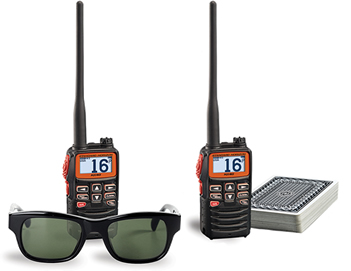

Marine \ Product Images \ VHF Handheld       HX40 Radio and Cards  ( 280.83 KB )

Marine \ Product Images \ VHF Handheld       HX40 Radio and Sunglasses  ( 248.63 KB )

Marine \ Product Images \ VHF Handheld       HX40 Front View  ( 511.24 KB )

Marine \ Product Images \ VHF Handheld       HX40 Front Left View  ( 500.99 KB )

How can I check to see if my radio is receiving correctly? I don’t seem to hear anyone talking.

Try switching the radio over to the Weather channel mode. When you are in this mode the USA will disappear and be replaced by WX on your screen. Make sure you check all 10 weather channels to find your local one. If you receive weather loud and clear, this is a good sign your radios receiver is working as the radio only has one receiver. You may be out of range of other boaters, or you may be listening on channels no one is actively using at the time.
